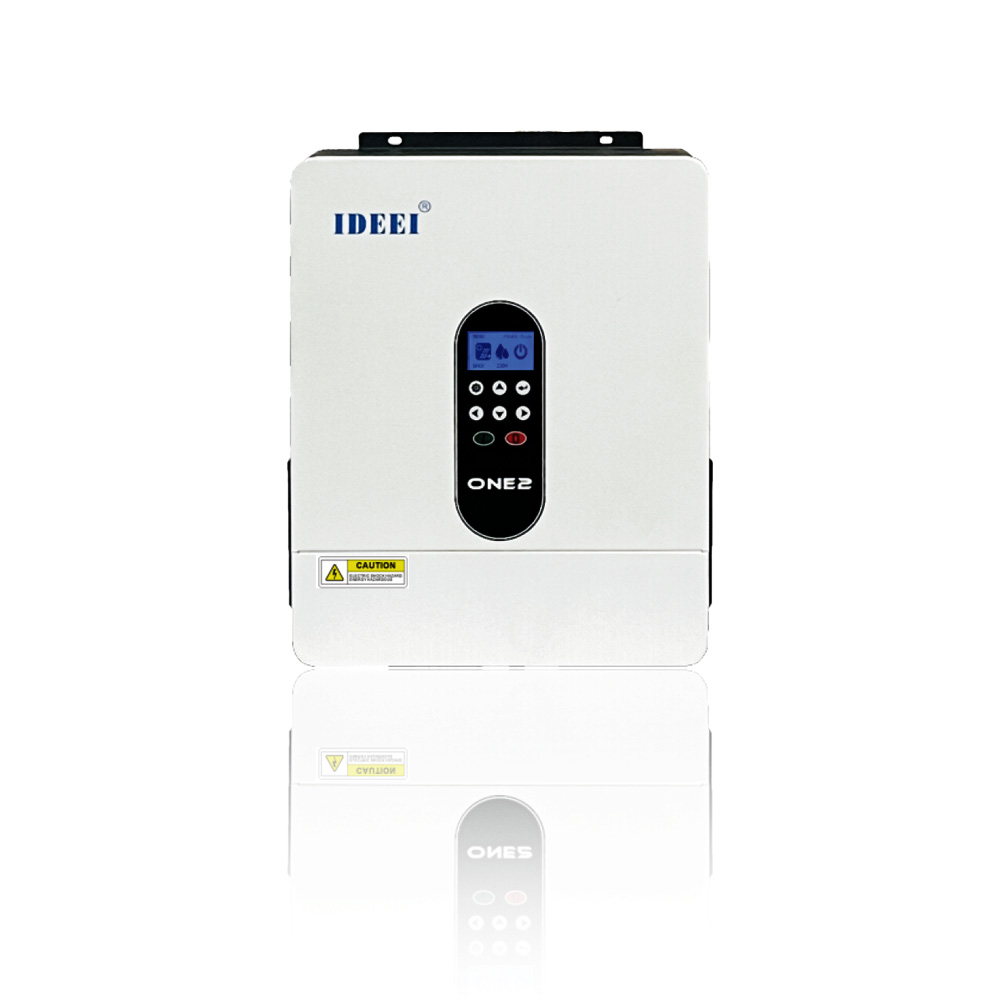

IDEEI ALLINONE hybrid solar inverters from 7.5kW to 30kW support selectable 220V and 380V home-power and water-pump modes, 110-850V DC PV input and 220-400V AC input for mixed loads.

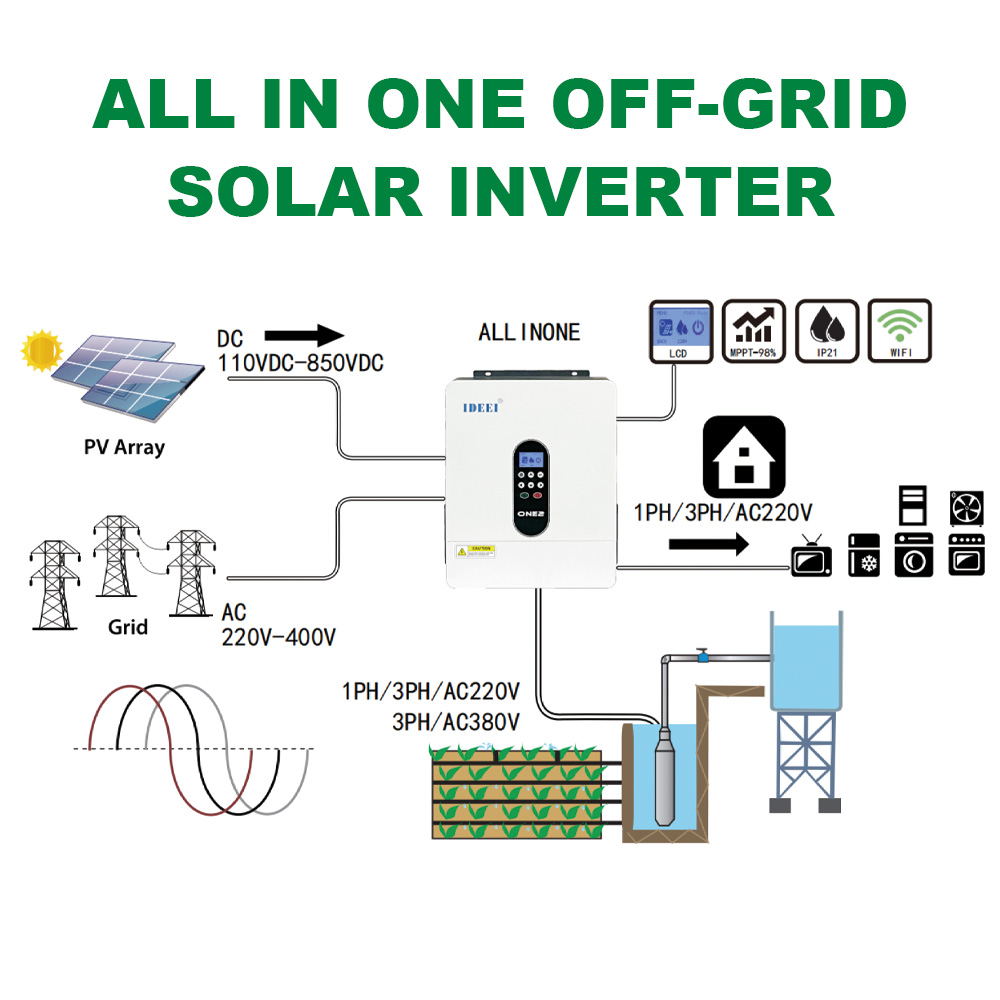

The ALLINONE series is a hybrid inverter line covering 7.5kW, 11kW, 15kW, 18kW, 22kW and 30kW, integrating photovoltaic conversion, AC-source input and selectable home-power or water-pump operation. Its documented wiring modes cover 220V and 380V output classes for household loads and water pumps. The exact simultaneous-load arrangement must be confirmed from the required terminals, voltage class and connected equipment.
One hybrid controller supports home-power and water-pump operating modes with voltage-class selection, so the same unit serves household loads and pump loads.
The supplied manual states photovoltaic input from 110V to 850V DC and AC input from 220V to 400V.
Home mode supplies compatible household AC loads while pump mode provides variable-frequency motor control for water pumps.
LCD operation, overload protection and electrical fault protection support commissioning and monitoring.
The table separates verified published data from project-dependent choices. Match the product by electrical ratings and application conditions; do not select from the headline power value alone.
| Power class | 380V-class output current | 220V-class output current | PV input | AC input | Order code |
|---|---|---|---|---|---|
| 7.5kW | 17A | 16A | 110-850V DC | 220-400V AC | Confirm exact order model |
| 11kW | 25A | 20A | 110-850V DC | 220-400V AC | Confirm exact order model |
| 15kW | 32A | 30A | 110-850V DC | 220-400V AC | Confirm exact order model |
| 18kW | 37A | 34A | 110-850V DC | 220-400V AC | Confirm exact order model |
| 22kW | 45A | 42A | 110-850V DC | 220-400V AC | Confirm exact order model |
| 30kW | 60A | 55A | 110-850V DC | 220-400V AC | Confirm exact order model |
| Item | Verified specification |
|---|---|
| Input voltage | PV 110-850V DC; AC 220-400V |
| Operating modes | Hybrid home-power mode and water-pump mode |
| Output voltage classes | 220V and 380V selectable according to wiring and LCD settings |
| Output frequency | Pump mode: 0-400Hz; home mode: 50Hz |
| Protection level | IP20 |
| Working temperature | -10°C to 60°C |
| Overload protection | 120% stated |
| Display | LCD mode, voltage, current and operating-data display |
A dependable quotation requires the complete operating profile, not only the nominal power. IDEEI reviews voltage, current, source or motor data, duty, environment, required options and destination together so the final configuration, accessories, protection devices and commercial scope can be stated clearly.
Separate continuous load from startup surge loads such as pumps, compressors and motors. Check the PV string at the lowest expected temperature so open-circuit voltage remains below the product limit. Where a battery is used, match chemistry, nominal voltage, charge current and communication protocol. Source priority, transfer behavior, neutral arrangement and generator compatibility must be confirmed for the complete system.
Installation and commissioning must be completed by qualified electrical personnel. Isolate all energy sources before wiring, verify terminal functions against the current manual, provide protective devices and grounding, and apply the published derating guidance for altitude, temperature, enclosure and cable length. Product-page data supports preliminary selection and does not replace project engineering or local code compliance.
Battery-free operation is supported only where it is stated for the ALLINONE 11kW and where the available PV or utility source can support the connected load. Confirm the intended operating mode before wiring.
Use the selected model’s permitted PV voltage window and maximum open-circuit voltage. Check cold-weather Voc, operating Vmp, current, total array power and local irradiance rather than selecting from inverter kW alone.
Supported AC input and source-priority modes depend on the selected series. The transfer arrangement, protection devices and neutral/earthing scheme must be confirmed for the installation.
Communication is model- and project-dependent. Confirm Wi-Fi, GPRS, RS232, RS485 and the required lithium-battery protocol before ordering.
Send the load list, surge loads, required output voltage and phase, PV module data, battery information, backup-source data, operating schedule, quantity and delivery country.
Send the required electrical and application data, quantity and destination. Our team will confirm the suitable model, options and quotation scope.
Request a Quote
Email Us
WhatsApp
Email: [email protected] · WhatsApp: +86 183 5724 1165
Every ALLINONE power class — 7.5, 11, 15, 18, 22 and 30kW — is offered in two versions, Regular and Simultaneous, and the choice changes what the 220V home output can do: on the Simultaneous version the 220V home output is limited to 10A with overload protection, while the pump output keeps its full variable-frequency range. Confirm which version the order needs before quoting, because the two versions share the same power headline but not the same home-load capacity. Home mode runs at 50Hz and pump mode from 0–400Hz; PV input is 110–850V DC and AC input 220–400V on all classes, with IP20 protection, 120% overload protection and a −10°C to 60°C working range.
