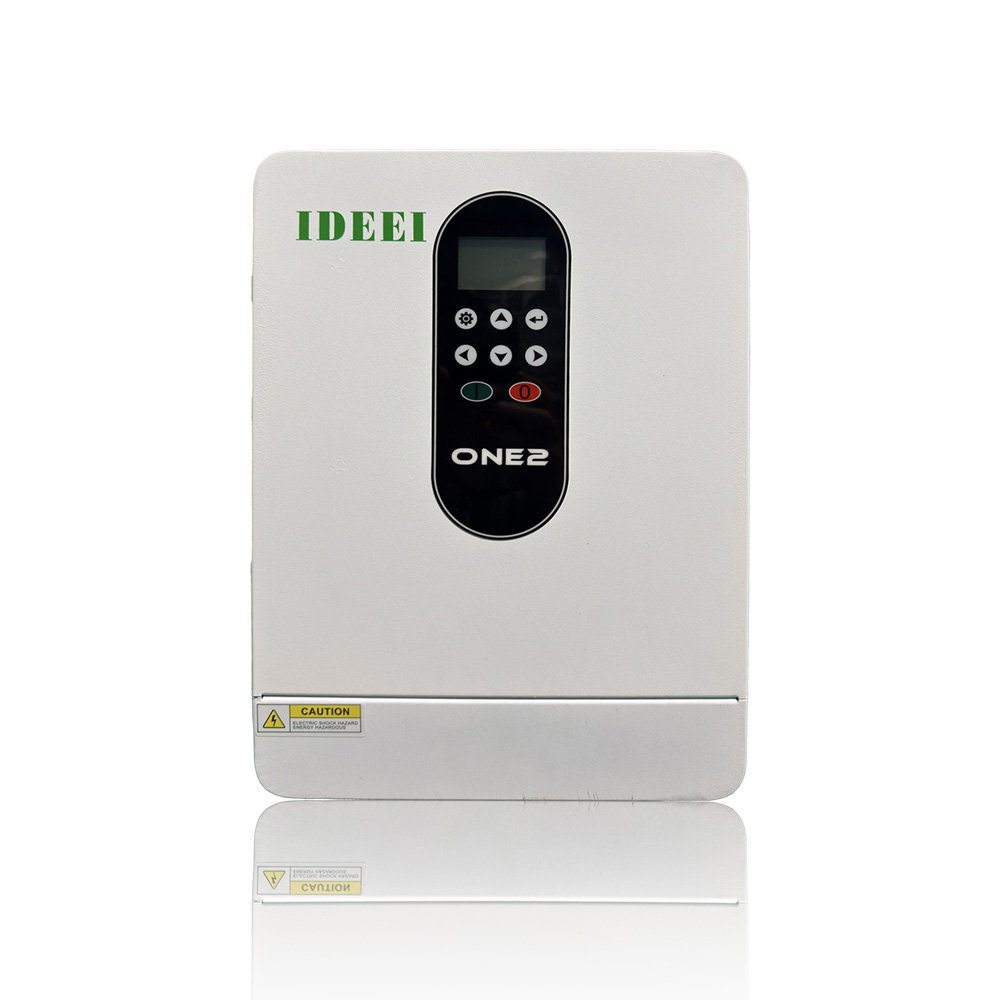

IDEEI QB-Hi 2 solar inverter is marketed in 4kW, 5.5kW, 7.5kW and 11kW classes with an IGBT power stage, 160-390V MPPT and pure sine-wave output.
QB-Hi 2 is positioned as a full-power IGBT off-grid solar inverter in four marketing power classes. Because the supplied artwork does not align every electrical table column unambiguously with those four labels, exact rated current must be confirmed before publication of a power-specific specification.
The supplied sheet positions QB-Hi 2 for full-rate output across four marketing power classes.
The marketing sheet identifies IGBT module technology for demanding AC loads.
The published 160-390V DC working range supports high-voltage photovoltaic strings.
Branding and configuration services are available subject to technical and commercial confirmation.
The table separates verified published data from project-dependent choices. Match the product by electrical ratings and application conditions; do not select from the headline power value alone.
| Marketing class | MPPT range | Maximum DC input | AC output | Electrical model mapping |
|---|---|---|---|---|
| 4kW | 160-390V DC | 400V DC | 220-240V AC | Confirm for selected model |
| 5.5kW | 160-390V DC | 400V DC | 220-240V AC | Confirm for selected model |
| 7.5kW | 160-390V DC | 400V DC | 220-240V AC | Confirm for selected model |
| 11kW | 160-390V DC | 400V DC | 220-240V AC | Confirm for selected model |
| Item | Verified specification |
|---|---|
| Maximum / rated DC input | 400V / 330V DC stated on supplied sheet |
| MPPT working range | 160-390V DC |
| Output waveform | Sine wave |
| Maximum efficiency | 99% stated |
| Enclosure | IP21 stated |
| Power stage | IGBT module technology stated |
A dependable quotation requires the complete operating profile, not only the nominal power. IDEEI reviews voltage, current, source or motor data, duty, environment, required options and destination together so the final configuration, accessories, protection devices and commercial scope can be stated clearly.
Separate continuous load from startup surge loads such as pumps, compressors and motors. Check the PV string at the lowest expected temperature so open-circuit voltage remains below the product limit. Where a battery is used, match chemistry, nominal voltage, charge current and communication protocol. Source priority, transfer behavior, neutral arrangement and generator compatibility must be confirmed for the complete system.
Installation and commissioning must be completed by qualified electrical personnel. Isolate all energy sources before wiring, verify terminal functions against the current manual, provide protective devices and grounding, and apply the published derating guidance for altitude, temperature, enclosure and cable length. Product-page data supports preliminary selection and does not replace project engineering or local code compliance.
Battery-free operation is supported only where it is stated for the QB-Hi 2 Series and where the available PV or utility source can support the connected load. Confirm the intended operating mode before wiring.
Use the selected model’s permitted PV voltage window and maximum open-circuit voltage. Check cold-weather Voc, operating Vmp, current, total array power and local irradiance rather than selecting from inverter kW alone.

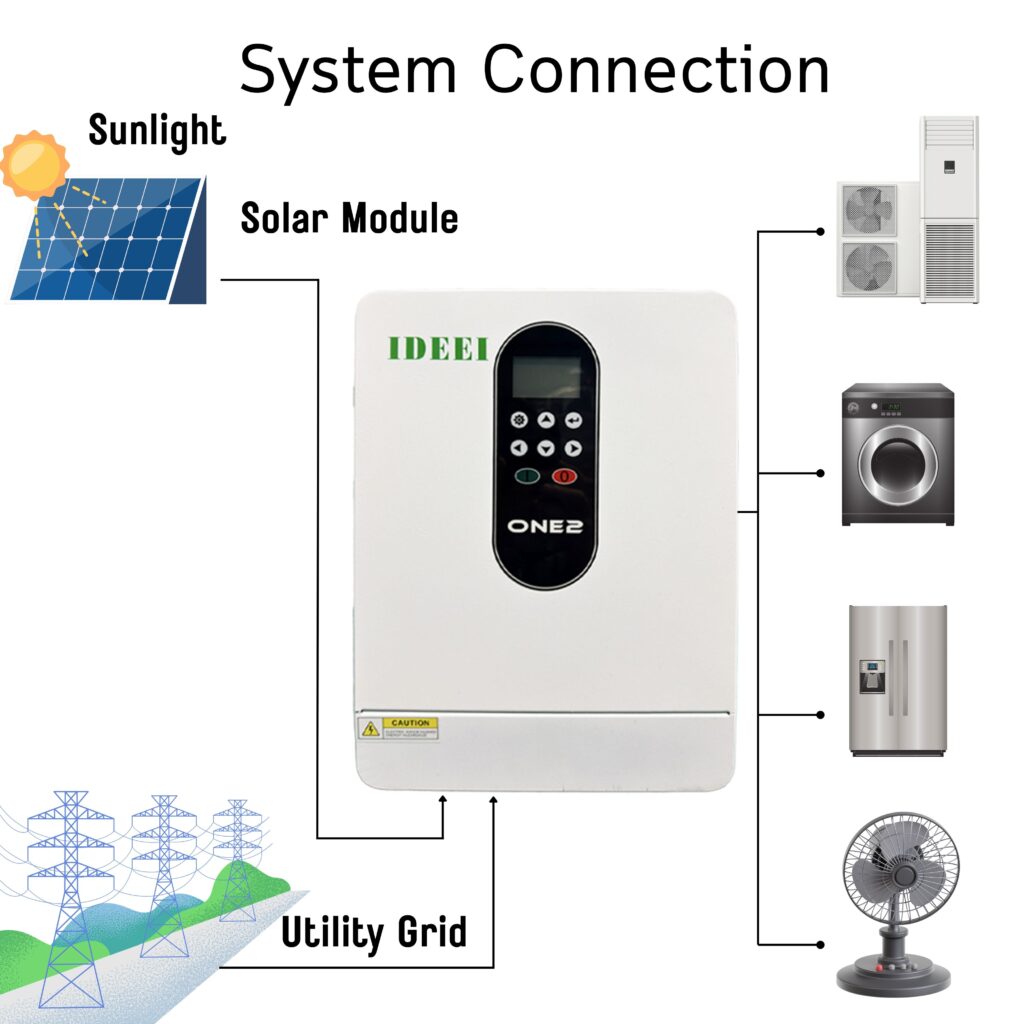

Supported AC input and source-priority modes depend on the selected series. The transfer arrangement, protection devices and neutral/earthing scheme must be confirmed for the installation.
Communication is model- and project-dependent. Confirm Wi-Fi, GPRS, RS232, RS485 and the required lithium-battery protocol before ordering.
Send the load list, surge loads, required output voltage and phase, PV module data, battery information, backup-source data, operating schedule, quantity and delivery country.
Send the required electrical and application data, quantity and destination. Our team will confirm the suitable model, options and quotation scope.
