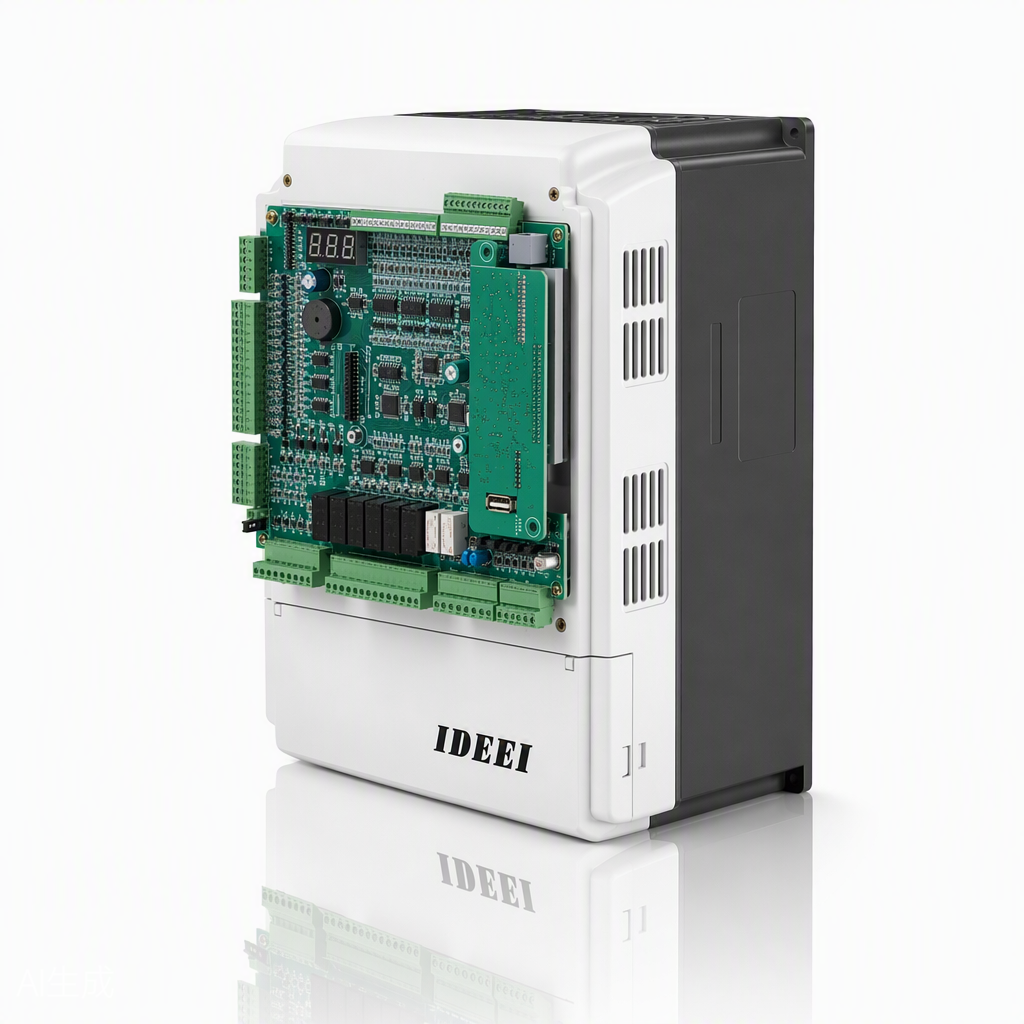

IDEEI 1K+ integrated elevator controller supports PMSM and induction motors, direct travel, up to 16 floors, parallel control and a 2.2-55kW product range.
The 1K+ / LX-D1K combines elevator-control logic with a closed-loop AC elevator drive. The supplied D1K brochure provides exact small-frame models, while the existing approved product definition extends the page range to 55kW. Extended order codes and currents remain confirmation items.
Combines elevator motion drive and elevator logic to reduce separate control components.
Supports PMSM gearless and asynchronous geared traction machines with correct encoder hardware.
Eight-floor full collective is standard, with expansion to sixteen and duplex parallel control.
Direct-travel, anti-rollback, I/O expansion and diagnostics support new and modernization projects.
The table separates verified published data from project-dependent choices. Match the product by electrical ratings and application conditions; do not select from the headline power value alone.
| Model / range | Voltage | Motor power (kW) | Input current (A) | Output current (A) |
|---|---|---|---|---|
| D1K-4002-2.2KW | 380-480V | 2.2 | 6.5 | 5.1 |
| D1K-4003-3.7KW | 380-480V | 3.7 | 10.5 | 9.0 |
| D1K-4005-5.5KW | 380-480V | 5.5 | 14.8 | 13.0 |
| D1K-4007-7.5KW | 380-480V | 7.5 | 20.5 | 18.0 |
| D1K-4011-11KW | 380-480V | 11 | 29.0 | 27.0 |
| D1K-4015-15KW | 380-480V | 15 | 36.0 | 33.0 |
| D1K 220V branch | 220-240V | 2.2-7.5 | See selected model | See selected model |
| 1K+ extended product range | 380V | 18.5-55 | Confirm | Confirm |
| Item | Verified specification |
|---|---|
| Elevator speed | Up to 1.75m/s stated |
| Floor control | 8 floors standard; expansion to 16 |
| Motor support | PMSM gearless and asynchronous geared |
| Group control | Two-elevator parallel control |
| Communication | CANbus and Modbus |
| Operating voltage range | 323-528V AC for 380-480V class |
| Enclosure | IP20 stated |
| Braking unit | Built in on listed D1K models |
A dependable quotation requires the complete operating profile, not only the nominal power. IDEEI reviews voltage, current, source or motor data, duty, environment, required options and destination together so the final configuration, accessories, protection devices and commercial scope can be stated clearly.
The inverter or integrated controller is one part of the elevator control and safety system. Door circuits, mechanical brake, safety chain, final limits, rescue power and inspection controls remain system-level responsibilities. Commission motor data and encoder interfaces only with the car secured and qualified personnel present. Verify braking energy, resistor duty, contactor sequence and local elevator code before passenger service.
Installation and commissioning must be completed by qualified electrical personnel. Isolate all energy sources before wiring, verify terminal functions against the current manual, provide protective devices and grounding, and apply the published derating guidance for altitude, temperature, enclosure and cable length. Product-page data supports preliminary selection and does not replace project engineering or local code compliance.
Motor support depends on the selected 1K+ / LX-D1K control mode and hardware. Send the motor nameplate and encoder details so the correct model, PG card and tuning procedure can be confirmed.
Open-loop vector control estimates motor operation without encoder feedback. Closed-loop vector control uses a compatible encoder and PG interface for higher low-speed and zero-speed performance.
UPS or battery rescue functions are series- and project-dependent. The emergency power rating, wiring, travel logic, contactors and local safety requirements must be engineered as a complete system.
No. Rated motor current, elevator load, speed, duty cycle, braking energy, motor type, encoder, cable length and ambient conditions all affect final selection.
Send the motor nameplate, elevator type, load, speed, travel height, floor count, encoder, brake arrangement, control-panel information, quantity and destination.
Send the required electrical and application data, quantity and destination. Our team will confirm the suitable model, options and quotation scope.
