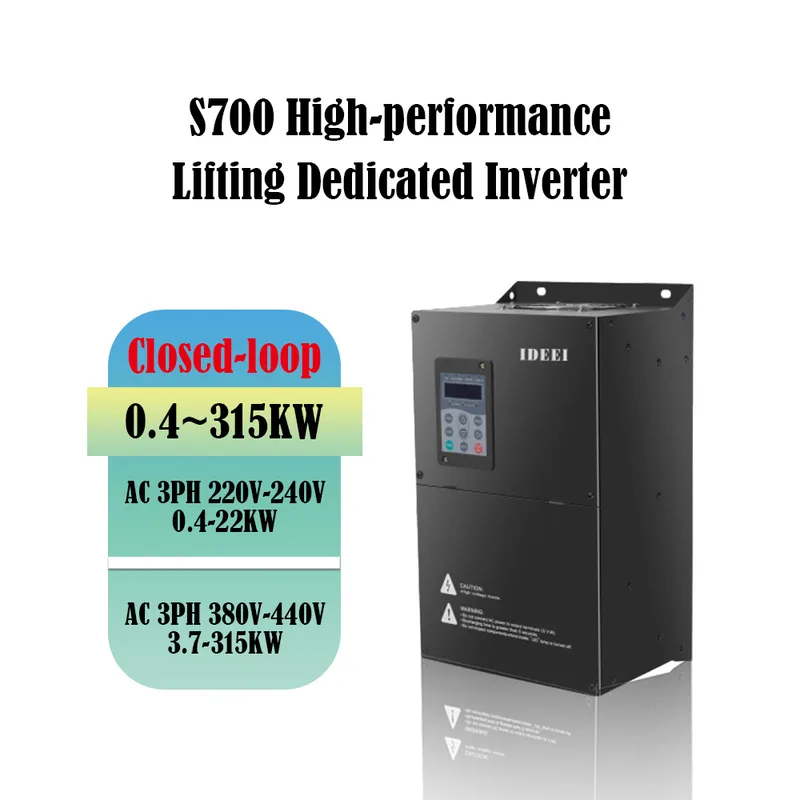

IDEEI S700 Crane VFD 0.75–400kW Lifting Drive
00 — CRANE VFD

IDEEI S700 Crane VFD 0.75–400kW Lifting Drive

0.75–400kW
In Stock Price on Request MOQ 1 UNIT

The IDEEI S700 Crane VFD is a specialized AC drive for cranes, hoists and industrial lifting equipment. Available from 0.75kW to 400kW with 380V three-phase input, it supports SFVC, CLVC and V/F control, up to 200% startup torque, intelligent brake sequencing, overload protection and optional crane process control.

Get a Quote→ 24h Reply WhatsApp→ Chat Now
  • F01200% startup torque at 0.0Hz under CLVC control
  • F02SFVC, CLVC and V/F motor control modes
  • F031:1000 speed range with ±0.02% speed stability under CLVC
  • F04150% rated-current overload capacity for 60 seconds
  • F05Dedicated crane brake time-sequence control
DOC DS-DESCSERIES CRANE VFDREV 2026-A

SPECIAL INVERTER FOR HOISTING

IDEEI S700 Crane VFD

The IDEEI S700 Crane VFD is a specialized AC drive for cranes, hoists and industrial lifting equipment. The three-phase 380V series covers 0.75kW to 400kW and combines SFVC, CLVC and V/F control with high starting torque, crane brake timing, overload protection, light-load high-speed operation and positioning functions.

0.75–400kW
Three-Phase 380V
200% Startup Torque
SFVC · CLVC · V/F
Maximum 150Hz

Key Features and Benefits

⚡ High Starting Torque

  • 150% at 0.5Hz under V/F control
  • 200% at 0.5Hz under SFVC
  • 200% at 0.0Hz under CLVC
  • Strong low-speed control for lifting loads

🛡️ Crane Protection

  • Mechanical brake time-sequence control
  • Low-voltage controlled stop
  • Hoisting restriction after overload
  • Overvoltage and overcurrent stall control

🏗️ Smart Lifting Control

  • Light-load high-speed calculation
  • Stop positioning without creeping
  • Three groups of motor parameters
  • Multi-motor switchover support

🔌 Flexible Integration

  • Panel, terminal or communication control
  • Multiple encoder interface options
  • Expandable digital and analog I/O
  • Optional industrial communication cards

Model Selection — Three-Phase 380V

Select the drive by rated output current and actual lifting duty, not by motor power alone. The complete brake and feedback configuration must be confirmed for the selected model.

S700 Model Motor Power Capacity Input Current Output Current
S700-0.75KW-4 0.75kW 1.5kVA 3.4A 2.1A
S700-1.5KW-4 1.5kW 3.0kVA 5.0A 3.8A
S700-2.2KW-4 2.2kW 4.0kVA 5.8A 5.1A
S700-4KW-4 4kW 5.9kVA 10.5A 9.0A
S700-5.5KW-4 5.5kW 8.9kVA 14.6A 13.0A
S700-7.5KW-4 7.5kW 11.0kVA 20.5A 17.0A
S700-11KW-4 11kW 17.0kVA 26.0A 25.0A
S700-15KW-4 15kW 21.0kVA 35.0A 32.0A
S700-18.5KW-4 18.5kW 24.0kVA 38.5A 37.0A
S700-22KW-4 22kW 30.0kVA 46.5A 45.0A
S700-30KW-4 30kW 40.0kVA 62.0A 60.0A
S700-37KW-4 37kW 57.0kVA 76.0A 75.0A
S700-45KW-4 45kW 69.0kVA 92.0A 91.0A
S700-55KW-4 55kW 85.0kVA 113.0A 112.0A
S700-75KW-4 75kW 114.0kVA 157.0A 150.0A
S700-90KW-4 90kW 134.0kVA 180.0A 176.0A
S700-110KW-4 110kW 160.0kVA 214.0A 210.0A
S700-132KW-4 132kW 192.0kVA 256.0A 253.0A
S700-160KW-4 160kW 231.0kVA 307.0A 304.0A
S700-200KW-4 200kW 250.0kVA 385.0A 377.0A
S700-220KW-4 220kW 280.0kVA 430.0A 426.0A
S700-250KW-4 250kW 355.0kVA 468.0A 465.0A
S700-280KW-4 280kW 396.0kVA 525.0A 520.0A
S700-315KW-4 315kW 445.0kVA 590.0A 585.0A
S700-355KW-4 355kW 500.0kVA 665.0A 650.0A
S700-400KW-4 400kW 565.0kVA 785.0A 725.0A
Selection note: Drive output current must be equal to or greater than the motor rated current. Check lifting load, duty cycle, brake arrangement, encoder and acceleration/deceleration requirements before confirming the model.

General Specifications

Item Verified specification
Control modes Sensorless flux vector control, closed-loop vector control and V/F control
Maximum frequency 150Hz
Carrier frequency 0.5–16kHz, automatically adjusted according to load characteristics
Speed range 1:100 under SFVC; 1:1000 under CLVC
Speed stability ±0.5% under SFVC; ±0.02% under CLVC
Torque-control accuracy ±5% under CLVC
Overload capacity 150% of rated current for 60 seconds; 180% for 3 seconds
Torque boost Fixed boost or customized boost from 0.1% to 30.0%
Ramp mode Straight-line ramp or S-curve ramp
DC braking current 0.0%–120.0% of rated current
Standard input 5 digital inputs and 2 analog inputs
Standard output High-speed pulse output, digital output, relay output and analog output
Ambient temperature −10°C to +40°C; derate 2% per °C from 40°C to 50°C
Altitude and humidity Below 1000m without derating; less than 95% RH without condensation

Optional and Project-Dependent Configuration

Communication

Isolated RS485 Modbus, PROFIBUS-DP, CANlink and CANopen cards according to the selected system.

Encoder Feedback

Differential, open-collector and UVW encoder interfaces, plus resolver support with the corresponding card.

Crane Process Card

Optional offset correction, synchronization, positioning, anti-swaying and grabbing control.

Configuration notice: Optional cards and project-dependent functions are not standard on every unit. Specify all required functions when requesting a quotation.

Typical Applications

Overhead Cranes
Gantry Cranes
Electric Hoists
Port Cranes
Shipyard Hoists
Material Handling

Information Required for Model Selection

  1. Motor nameplate, motor type, rated voltage, power and current
  2. Crane or hoist type, rated lifting load and duty cycle
  3. Required control mode and encoder type, when closed-loop control is used
  4. Mechanical brake arrangement and required braking frequency
  5. Quantity, destination country or port and required optional communication

Installation Notes

  • Install indoors, away from direct sunlight, dust, corrosive gas, combustible gas, oil mist, vapor, dripping water and salt.
  • Use shielded encoder cable and ensure reliable grounding.
  • Do not install a capacitor or surge suppressor on the AC drive output.
  • Do not start or stop the drive by repeatedly switching the input contactor.
  • Installation, wiring and commissioning must be completed by qualified personnel in accordance with the manual and local requirements.

Frequently Asked Questions

What is the S700 power range?

The S700 manual lists three-phase 380V models from 0.75kW to 400kW.

Does the S700 support closed-loop vector control?

Yes. It supports CLVC, SFVC and V/F control. CLVC requires a compatible encoder and the corresponding feedback interface.

What is the maximum startup torque?

The S700 provides 200% startup torque at 0.0Hz under CLVC and 200% at 0.5Hz under SFVC.

Can it control a mechanical crane brake?

Yes. The S700 provides crane-specific brake time-sequence control. The external brake circuit and braking components must be selected for the actual load and duty cycle.

Are anti-sway and synchronized lifting standard?

No. Offset correction, synchronization, positioning, anti-swaying and grabbing require the optional crane process card and project configuration.

Need S700 Model Selection or Bulk Pricing?

Send the motor nameplate, lifting load, voltage, brake arrangement, encoder type, quantity and destination. Our team will help confirm the appropriate drive and optional configuration.
