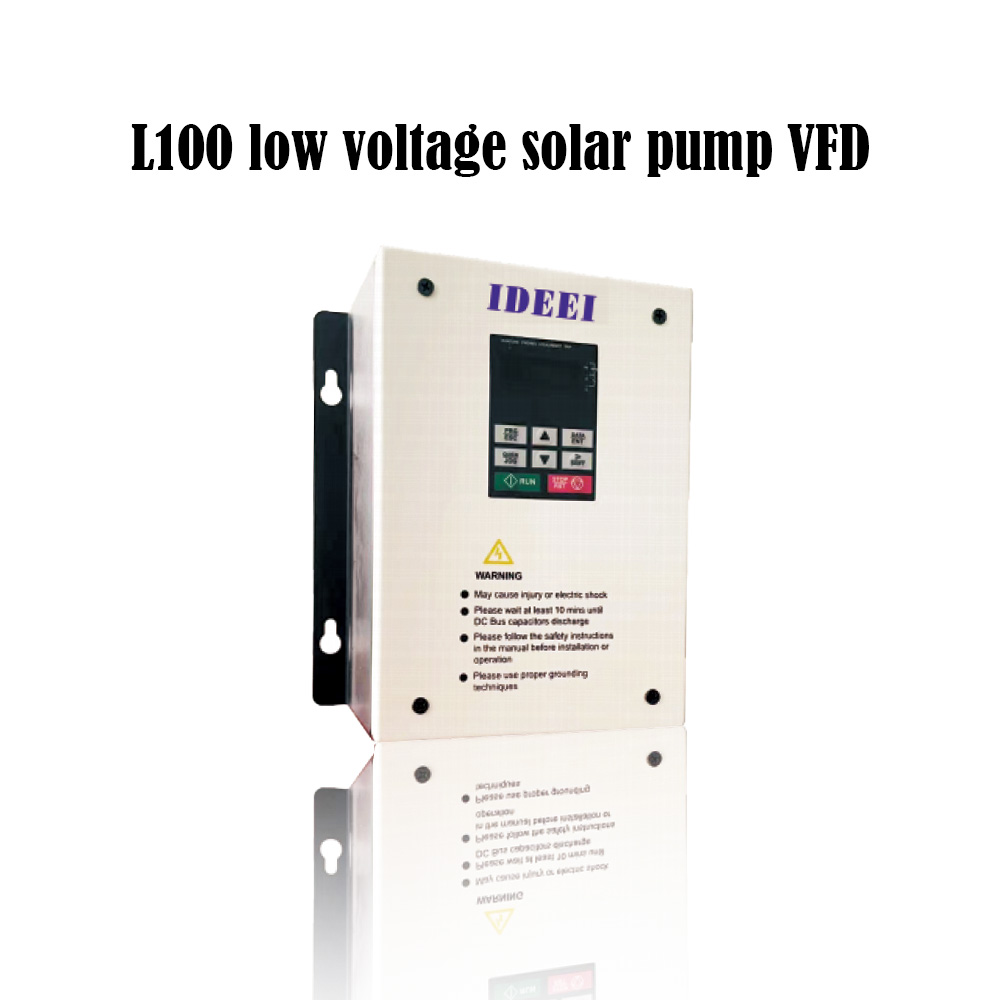

LF-100 is a solar pump inverter platform for Confirm for selected pump water-pumping applications. Verified DC48V / 72V / 96V PMSM pump systems branches use MPPT-based solar control and pump-oriented protection. Send the pump nameplate, PV module data, head, flow and cable length so IDEEI can confirm the exact order model.
The LF-100 converts solar-array power into controlled AC output for water pumps across Confirm for selected pump. Its verified model branches cover DC48V / 72V / 96V PMSM pump systems; final selection must follow the pump current, motor type and PV string data.
The controller adjusts pump speed as available PV power changes, supporting direct solar water pumping.
Automatic operating logic and pump protection functions support unattended water-supply applications.
PV input is the primary source; supported AC backup arrangements depend on the selected model and wiring.
Current, voltage, phase, motor type, PV string and cable length are checked together before ordering.
The table below keeps every verified power or model branch visible. Match the inverter by pump rated current, voltage, phase and application conditions—not by kW alone.
| Controller | PV input | Optimal MPPT range | Motor | Power |
|---|---|---|---|---|
| LF-100 | 40–130V DC | 48–110V DC | Permanent-magnet synchronous pump motor | Confirm for selected pump |
| Item | Verified specification |
|---|---|
| PV input range | 40–130V DC |
| Optimal MPPT voltage | 48–110V DC |
| Maximum output current | 11.8A |
| Speed range | 0–3000rpm |
| Cooling | Air cooled |
| Working environment | -15°C to 60°C |
For a dependable quotation, also confirm the installation altitude, ambient temperature, enclosure requirement, daily operating schedule, water-source conditions and whether utility or generator backup is required. These details affect derating, cable selection, protection devices and the final AC/DC system design.
Installation and commissioning must be completed by qualified electrical personnel. Verify polarity, grounding, protective devices, PV open-circuit voltage and motor wiring before energizing. Apply the manual derating and reactor guidance for temperature, altitude and long cable runs.
The supplied manual describes low-voltage permanent-magnet synchronous solar submersible pump systems.
The verified solar input range is 40–130V DC, with an optimal MPPT operating range of 48–110V DC.
No. The manual does not provide a public kW model table; send the pump voltage, current and motor data for matching.
Yes. The manual documents high-water, low-water and source-water float control.
Qualified electrical personnel should verify polarity, motor wiring, grounding and PV open-circuit voltage before commissioning.
Send the pump nameplate, PV module data, required head and flow, cable length and quantity. Our team will confirm the suitable model and project configuration.
