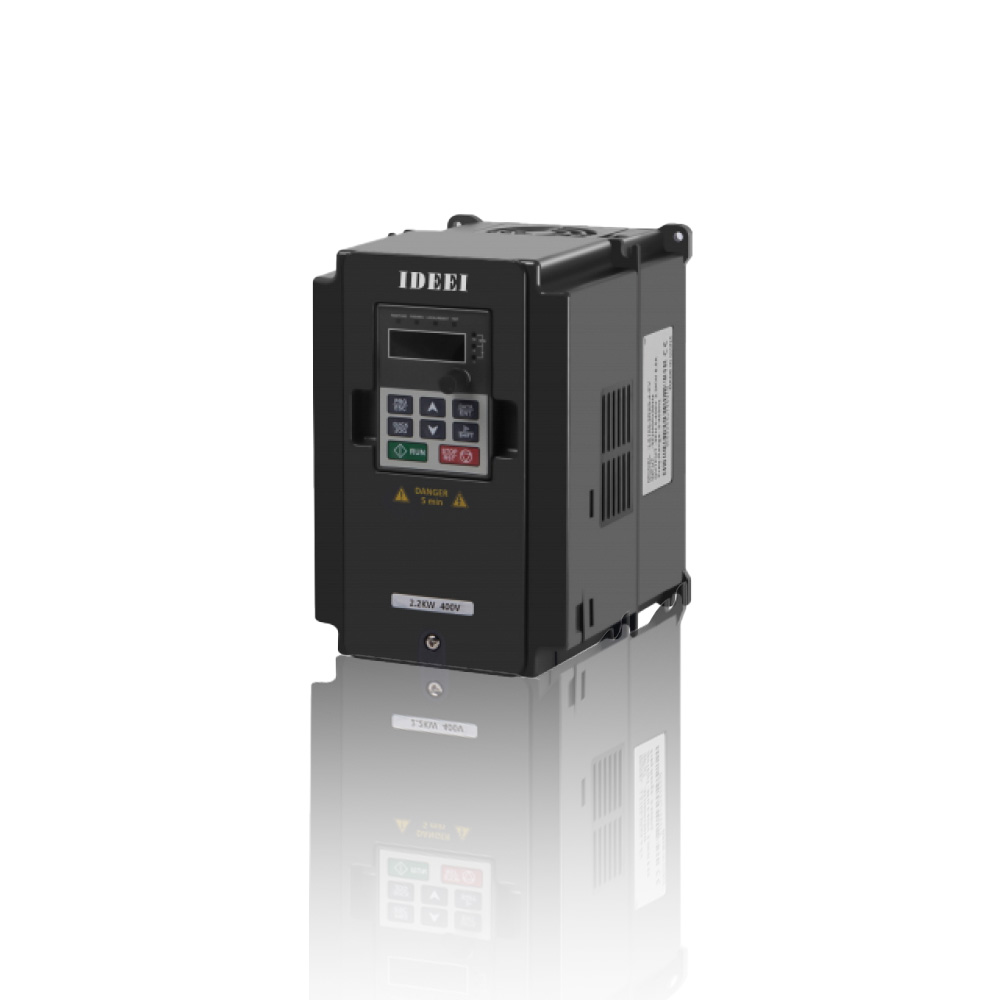

IDEEI 3300M Mini Vector Inverter | 220V/380V Compact VFD | RS485

3300M220V380V

In Stock Price on Request MOQ 1 UNIT

Compact mini vector inverter for single-phase 220V, three-phase 220V or three-phase 380V motor systems. The 3300M integrates SFVC, CLVC and V/F control, six digital inputs, analog I/O and RS485 communication for space-limited machinery and automation panels.

Get a Quote→ 24h Reply WhatsApp→ Chat Now

F01Compact panel-mount vector inverter design
F02Single-phase 220V and three-phase 220V/380V connections
F03SFVC, CLVC and V/F control modes
F04Maximum frequency setting up to 320Hz
F05Six digital inputs with high-speed pulse support on DI5

DOC DS-DESCSERIES GENERAL PURPOSE INVERTERREV 2026-A

IDEEI 3300M Mini Vector Inverter

The IDEEI mini vector inverter combines flexible motor-control functions with a compact panel-mount design. It supports single-phase 220V, three-phase 220V and three-phase 380V main-circuit configurations, together with sensorless vector, closed-loop vector and V/F control modes for machine builders and industrial automation.

Compact 3300M
220V / 380V
SFVC / CLVC / V/F
RS485

3300M Mini Vector Inverter Features

📦 Compact Installation

The mini enclosure reduces panel-space requirements while retaining motor-control, terminal-control and communication functions.

⚡ Multiple Control Modes

Parameter selection supports sensorless flux vector control, closed-loop vector control and V/F control for different motor and load requirements.

🔌 Practical Control I/O

Six digital inputs, one analog input, one analog output, a digital output and relay output simplify integration with switches, sensors and PLC systems.

🌐 RS485 Communication

The 485+ and 485- terminals provide serial communication for remote parameter setting, operating commands and monitoring.

Verified Interface and Control Data

Item	Specification	Application Note
Main-circuit options	1-phase 220V; 3-phase 220V or 380V	Confirm exact product nameplate before wiring
Control modes	SFVC, CLVC, V/F	CLVC requires compatible feedback hardware
Maximum frequency	Setting range up to 320Hz	Do not exceed motor limits
Digital inputs	DI1-DI6	DI5 supports high-speed pulse input
Analog I/O	AI; AO 0-10V or 0-20mA	Use correct voltage/current selection
Relay output	ROA / ROC normally open	AC250V up to 3A; DC30V up to 1A
Communication	RS485	Protocol and address set by parameters

Selection input: provide motor power and current, supply voltage and phase, load type, required control mode, maximum speed, acceleration/deceleration time, braking demand and RS485 requirements.

Power-range notice: the supplied 3300M PDF does not contain a complete electrical model-selection table. Confirm available power ratings and output current from the current product nameplate or quotation before publication and ordering.

Typical Applications

Compact conveyors, packaging machines, small pumps and fans, food machinery, textile equipment, woodworking machines, mixers and OEM automation panels where installation space is limited.

Frequently Asked Questions

Which input voltage does the 3300M support?

The manual shows single-phase 220V and three-phase 220V/380V main-circuit configurations. Always confirm the exact inverter nameplate before connecting power.

Does it support vector control?

Yes. The parameter table provides SFVC and CLVC in addition to V/F control. Closed-loop operation requires compatible feedback hardware.

Can it connect to a PLC?

Yes. Digital and analog I/O plus RS485 communication support integration with a PLC or other industrial controller.

What power ratings are available?

The supplied manual does not provide a complete power table. Send the motor nameplate and required voltage so the current available model can be confirmed.

Confirm Your 3300M Model

Send the motor nameplate, supply voltage, load type, quantity and destination country for power selection and quotation.
