00 — SOLAR PUMP INVERTER

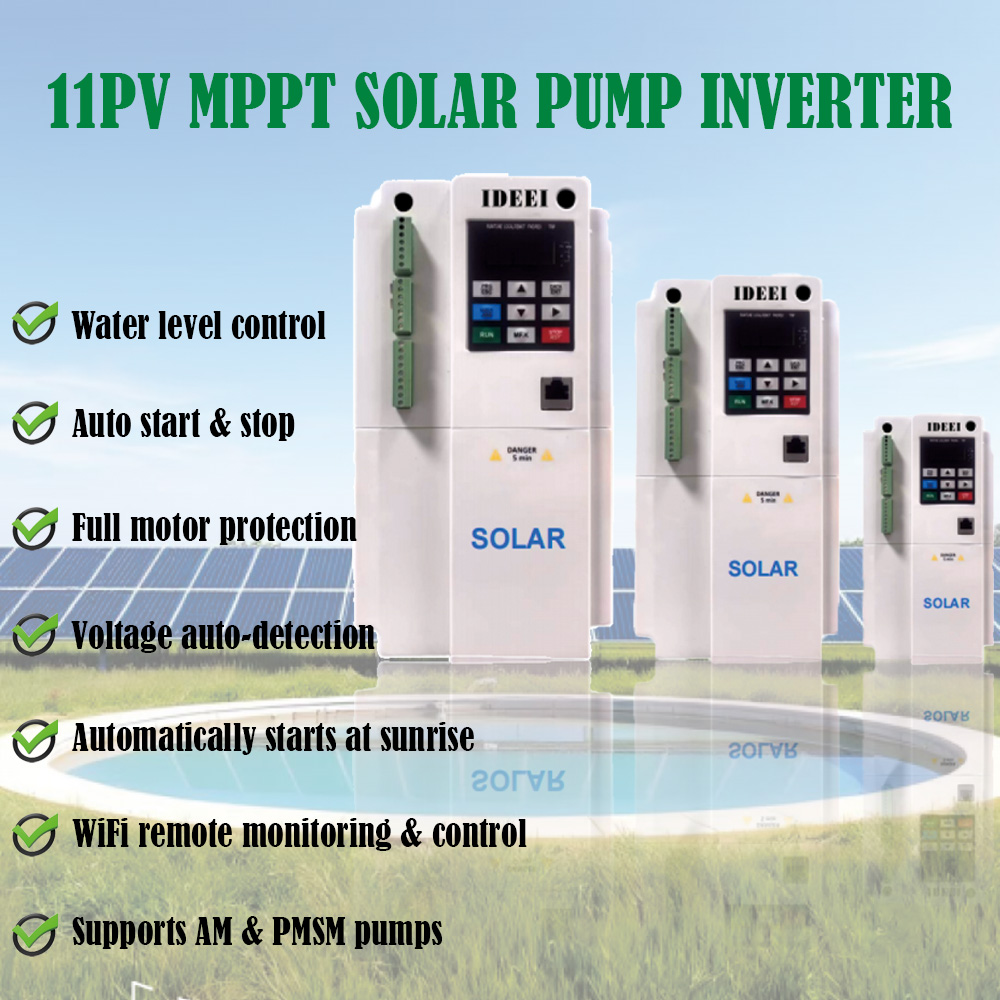

IDEEI 11PV MPPT Solar Pump Inverter 2.2–37kW AC/DC VFD

11PV2.2–37kW220–240V380–440V1 Phase3 PhaseMPPTAC/DC

In Stock Price on Request MOQ 1 UNIT

The IDEEI 11PV is a dedicated photovoltaic water-pump inverter with a branded catalog range of 2.2–37kW. It supports the stated 220–240V and 380–440V branches, automatic sunrise operation, sleep/wake control, working-voltage detection and AM/PMSM pump applications. Confirm the exact order model and current before quotation.

Get a Quote→ 24h Reply WhatsApp→ Chat Now

F01MPPT Efficiency Above 99.6%: The supplied operation manual states fast-response MPPT with stable operating efficiency above 99.6%.
F02Induction & PMSM Pump Control: The platform supports AC induction pumps and permanent-magnet synchronous pump motors with correct setup.
F03Automatic Pump Protection: Dry-run, phase-loss, maximum-current, low-power and low-frequency protections are documented.
F04Automation & Monitoring: Sleep/wake logic and water-level control are built in; GPRS remote functions and timer relay are optional.

DOC DS-DESCSERIES SOLAR PUMP INVERTERREV 2026-A

IDEEI · Solar Pumping Control

IDEEI 11PV MPPT Solar Pump Inverter 2.2–37kW

The 11PV is positioned in the approved product catalog as a photovoltaic water-pump VFD for 2.2–37kW systems. The branded voltage and power branches below replace the broader generic platform range previously shown.

2.2–37kW220–240V / 380–440V99% MPPTAM / PMSM pump support

Key Features & Benefits

Automatic Start & Sleep

The catalog states automatic start and sleep operation for changing solar conditions.

MPPT Solar Pump Control

Maximum-power-point tracking is stated up to or above 99%, depending on the named series page.

Water-Level Control

The catalog lists port water-level control together with automatic sunrise run and sleep/wake logic.

Optional Remote Functions

Wi-Fi or GPRS functions are optional where they are stated in the series catalog.

Model Selection

The table below keeps every verified power or model branch visible. Match the inverter by pump rated current, voltage, phase and application conditions—not by kW alone.

Catalog branch	Power range	Output phase	Voltage class	Order code
AC 1PH 220–240V	2.2–15kW	Single phase	220–240V	Confirm exact order model
AC 3PH 220–240V	2.2–15kW	Three phase	220–240V	Confirm exact order model
AC 3PH 380–440V	2.2–37kW	Three phase	380–440V	Confirm exact order model

Selection note: The Product Catelog confirms branch ranges, not every order code or rated current. Use the pump nameplate to confirm the exact order model before creating a power-specific SKU page.

Technical Specifications

Item	Verified specification
Catalog range	2.2–37kW
Voltage branches	220–240V and 380–440V
MPPT efficiency	99%
Motor support	AM and PMSM pumps
Operation	Automatic sunrise run and sleep/wake

Options / project configuration: Wi-Fi remote monitoring and AC/DC configuration must be confirmed for the selected model. Do not publish generic SG600 order codes as branded 11PV/33PV codes without an approved cross-reference.

Typical Applications

Urban water supply

Desert water management

Grassland animal husbandry

Aquaculture water supply

Agricultural irrigation

Remote-area pumping

Information Required for Model Selection

Pump rated power, voltage, phase and full-load current
Pump type and motor type (induction, PMSM or single-phase)
Required head, flow and daily operating time
PV module Voc, Vmp, power and planned series/parallel layout
Grid or generator backup requirement
Cable length, site altitude, ambient temperature and enclosure requirement

For a dependable quotation, also confirm the installation altitude, ambient temperature, enclosure requirement, daily operating schedule, water-source conditions and whether utility or generator backup is required. These details affect derating, cable selection, protection devices and the final AC/DC system design.

Installation & Derating Notes

Installation and commissioning must be completed by qualified electrical personnel. Verify polarity, grounding, protective devices, PV open-circuit voltage and motor wiring before energizing. Apply the manual derating and reactor guidance for temperature, altitude and long cable runs.

Frequently Asked Questions

Can the inverter run a pump directly from solar panels?

Yes. The 11PV is designed for PV-powered pumping. Confirm the PV string voltage remains inside the verified range for the selected 220V and 380V classes model.

Can grid power or a generator be used as backup?

Backup input depends on the selected branch and wiring configuration. Do not connect sources simultaneously unless the selected model and protection arrangement explicitly support it.

How should the inverter power be selected?

Check the pump nameplate current, rated voltage, phase, motor type, head, flow and cable length. The selected inverter current must meet the motor requirement.

Does the system need batteries?

The standard solar-pumping architecture can operate directly from the PV array. Battery use is not required unless a separate project design specifies it.

Is remote monitoring standard?

Remote communication is optional or model-dependent. Confirm the required GPRS, 4G or Wi-Fi module before ordering.

Engineering selection & bulk orders

Send the nameplate. We size the drive.

Send the pump nameplate, PV module data, required head and flow, cable length and quantity. Our team will confirm the suitable model and project configuration.
