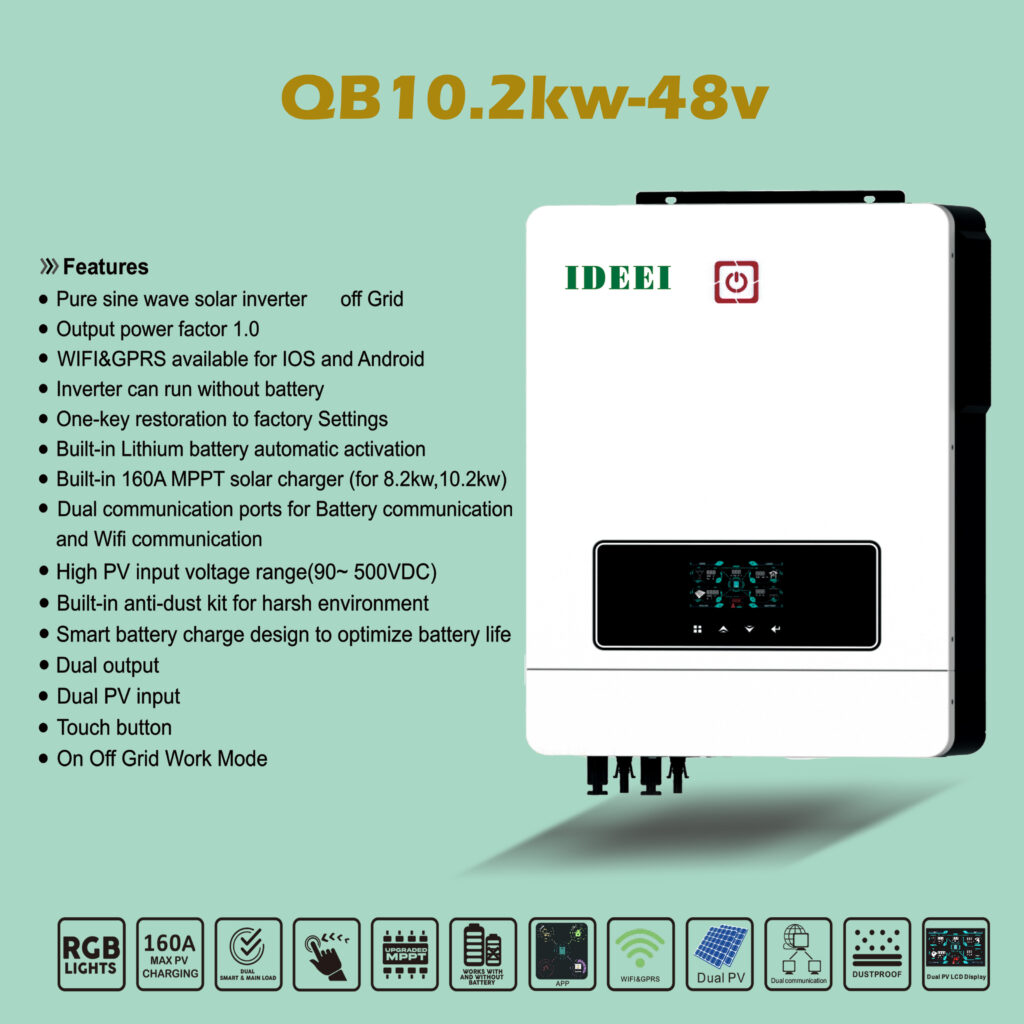

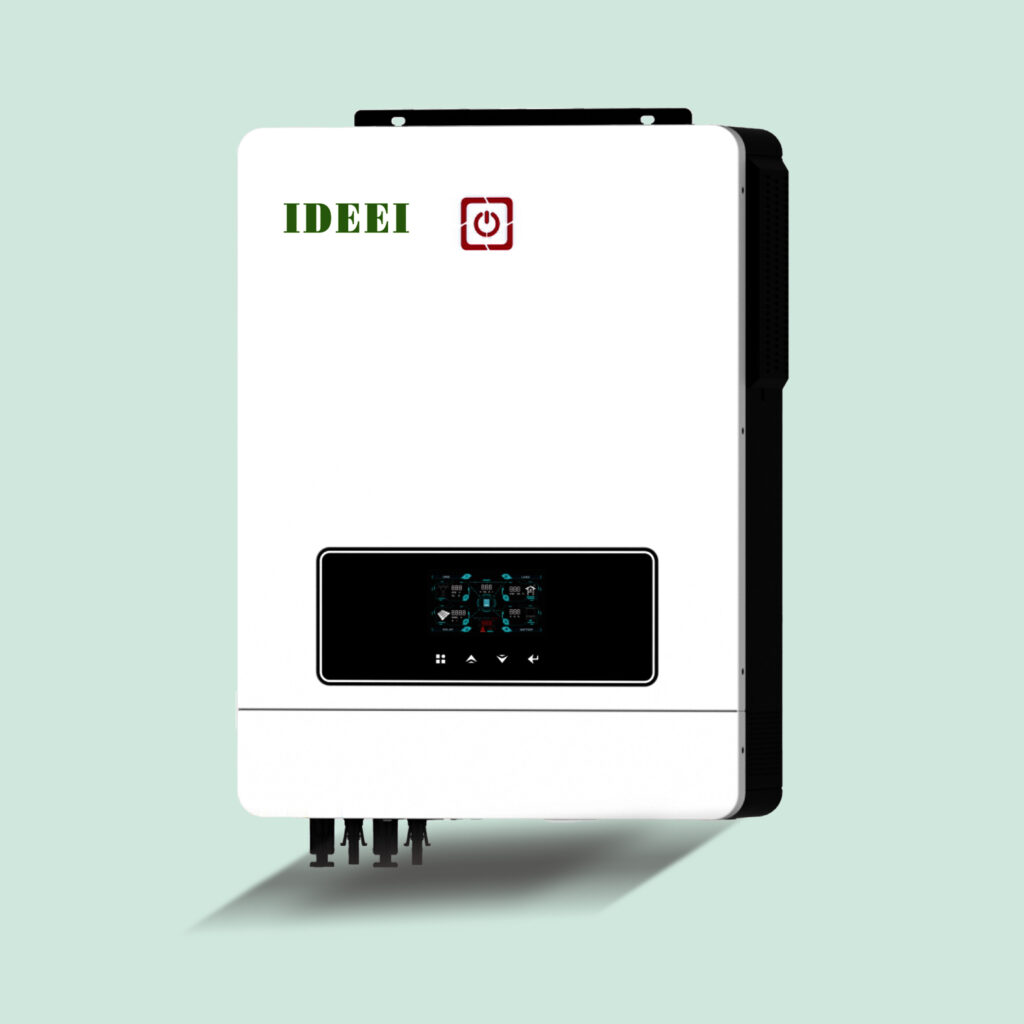

IDEEI QB102-48 10.2kW off-grid solar inverter combines dual PV input, 48V battery operation, pure sine-wave 220-240V output and 160A solar charging.
The QB102-48 provides 10.2kW of off-grid pure sine-wave power with dual photovoltaic inputs and a 48V battery system. The published data sheet confirms the electrical values in the model table; load surge and battery communication still require project review.
Stable AC waveform supports household appliances, office equipment and other compatible loads.
A wide photovoltaic operating window supports practical string design while the absolute PV limit must be respected.
PV, utility or generator and battery connections support off-grid energy management according to model configuration.
Communication options and electrical protections support supervised, application-specific installations.
The table separates verified published data from project-dependent choices. Match the product by electrical ratings and application conditions; do not select from the headline power value alone.
| Model | Rated output | Nominal output current | Battery | PV capacity | MPPT range |
|---|---|---|---|---|---|
| QB102-48 | 10.2kW / 10.2kVA | 44.3A | 48V DC | 5,400W + 5,400W | 90-450V DC |
| Item | Verified specification |
|---|---|
| AC output | 220/230/240V AC pure sine wave |
| PV nominal / maximum voltage | 360V / 500V DC |
| PV start voltage | 120V DC |
| Maximum PV input current | 2 × 18A |
| Maximum solar charge current | 160A |
| Maximum AC charge current | 140A |
| DC-to-AC efficiency | 94% |
| Communication | RS232 / RS485 / Wi-Fi / GPRS / lithium battery |
A dependable quotation requires the complete operating profile, not only the nominal power. IDEEI reviews voltage, current, source or motor data, duty, environment, required options and destination together so the final configuration, accessories, protection devices and commercial scope can be stated clearly.
Separate continuous load from startup surge loads such as pumps, compressors and motors. Check the PV string at the lowest expected temperature so open-circuit voltage remains below the product limit. Where a battery is used, match chemistry, nominal voltage, charge current and communication protocol. Source priority, transfer behavior, neutral arrangement and generator compatibility must be confirmed for the complete system.
Installation and commissioning must be completed by qualified electrical personnel. Isolate all energy sources before wiring, verify terminal functions against the current manual, provide protective devices and grounding, and apply the published derating guidance for altitude, temperature, enclosure and cable length. Product-page data supports preliminary selection and does not replace project engineering or local code compliance.
Battery-free operation is supported only where it is stated for the QB102-48 and where the available PV or utility source can support the connected load. Confirm the intended operating mode before wiring.
Use the selected model’s permitted PV voltage window and maximum open-circuit voltage. Check cold-weather Voc, operating Vmp, current, total array power and local irradiance rather than selecting from inverter kW alone.
Supported AC input and source-priority modes depend on the selected series. The transfer arrangement, protection devices and neutral/earthing scheme must be confirmed for the installation.
Communication is model- and project-dependent. Confirm Wi-Fi, GPRS, RS232, RS485 and the required lithium-battery protocol before ordering.
Send the load list, surge loads, required output voltage and phase, PV module data, battery information, backup-source data, operating schedule, quantity and delivery country.
Send the required electrical and application data, quantity and destination. Our team will confirm the suitable model, options and quotation scope.
