Description

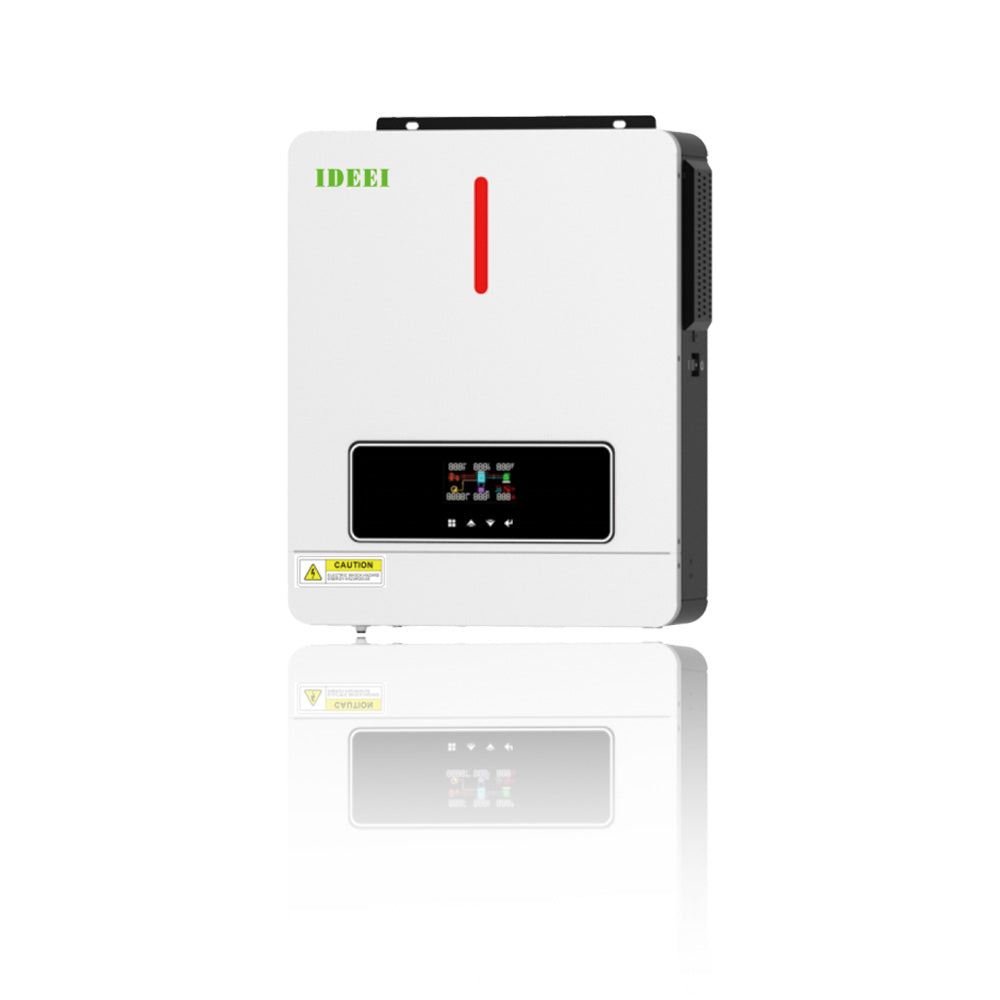

IDEEI QB Series Hybrid Solar Inverter
A robust hybrid power solution combining 4.2KW/6.2KW pure sine wave output with integrated 100A MPPT solar charging. Engineered for industrial reliability with battery-less operation capability and wide 120-450V PV input range—ideal for farms, remote installations, and backup power systems where diesel cost elimination is critical.
Key Features
⚡ 120A Max MPPT Charging
- Built-in 100A MPPT solar charger with 3-step charging algorithm
- Supports 4500W (QB42) / 6500W (QB62) PV array power
- Wide MPPT voltage range: 90-430Vdc for flexible panel configuration
- Max 120A combined AC + Solar charging current
🔋 Battery-Less Operation
- Operates directly from solar or grid—no battery required
- Seamless switching between solar, battery, and grid power
- Compatible with Li-ion & Lead-acid batteries when storage needed
- Battery equalization function extends lifecycle
🛡️ Industrial-Grade Protection
- Built-in anti-dust kit for harsh, sandy environments
- IP21 protection with intelligent cooling system
- Operating range: -10°C to 50°C
- Overload protection: 150% for 5s, 110-150% for 10s
📊 Smart Monitoring & Control
- LCD display for local system status monitoring
- Remote monitoring via WiFi/GPRS mobile app
- Pure sine wave output safe for sensitive electronics
- CE certified, ISO 9001 compliant manufacturing
Technical Specifications
| Parameter | QB42-24 | QB62-48 |
|---|---|---|
| Rated Output Power | 4200VA / 4200W | 6200VA / 6200W |
| Nominal DC Voltage | 24Vdc | 48Vdc |
| Max PV Array Power | 4500W | 6500W |
| PV MPPT Voltage Range | 90 – 430Vdc (Max 450Vdc Open Circuit) | |
| Max Charging Current | 120A (AC + Solar Combined) | |
| AC Input Voltage | 230Vac (90-280V operating range) | |
| Output Waveform | Pure Sine Wave (230Vac ±5%, 50Hz) | |
| Peak Efficiency | 91% (Inverter) / >95% (Line Mode) | |
| Transfer Time | 10ms (UPS) / 20ms (Appliances) | |
| Dimensions (D×W×H) | 420 × 350 × 110 mm | |
| Net Weight | 10 kg | 12 kg |
| Operating Temperature | -10°C to 50°C (IP21) | |
| Certifications | CE Certified, ISO 9001 | |
Battery Charging Specifications
| Parameter | QB42-24 (24V System) | QB62-48 (48V System) |
|---|---|---|
| Charging Algorithm | 3-Step (Bulk, Absorption, Float) | |
| Bulk Voltage (Flooded) | 29.2V | 52V |
| Bulk Voltage (AGM/Gel) | 28.2V | 51V |
| Float Voltage (AGM/Gel) | 27Vdc | 50Vdc |
| Low DC Cut-off (<50% load) | 20.5Vdc | 44.5Vdc |
| High DC Cut-off | 33Vdc | 57Vdc |
Frequently Asked Questions
Do I need batteries to operate this inverter?
No. The IDEEI QB series supports battery-less operation, allowing you to run directly from solar panels or grid power during daylight hours. This reduces initial investment costs while maintaining flexibility to add batteries later for nighttime backup power.
What is the maximum solar panel array I can connect?
The QB42-24 supports up to 4500W of solar panels, while the QB62-48 supports up to 6500W. Both models accept a wide PV input range of 120-450Vdc (MPPT range: 90-430Vdc), allowing flexible series/parallel configurations with standard solar panels.
Is this inverter suitable for dusty or agricultural environments?
Yes. This inverter includes a built-in anti-dust kit specifically designed for harsh environments like farms, deserts, and industrial sites. With IP21 protection and intelligent cooling, it operates reliably in temperatures from -10°C to 50°C and humidity up to 95% non-condensing.
Can I monitor the system remotely?
Yes. The inverter features an integrated LCD display for local monitoring and supports remote monitoring via WiFi or GPRS through a dedicated mobile app. This allows real-time tracking of solar generation, battery status, load consumption, and system alerts from anywhere.
What battery types are compatible?
The QB series supports both Li-ion and Lead-acid batteries (Flooded, AGM, Gel). The built-in MPPT charger automatically adjusts charging voltages based on battery chemistry, and includes an equalization function to extend battery lifecycle and prevent sulfation.
