Description

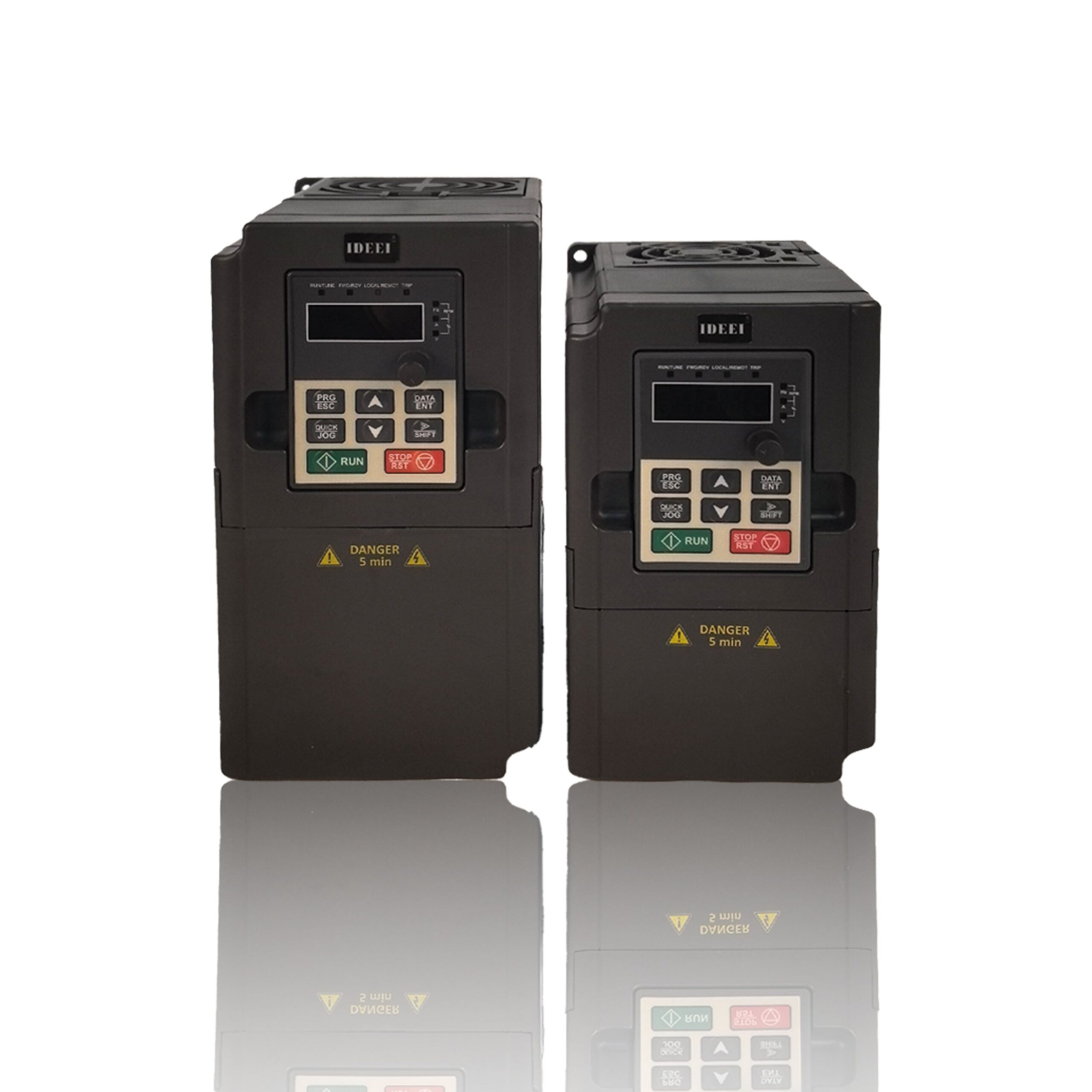

The 100PV Mini VFD 2.2kW is a compact, high-performance AC motor drive engineered for precision control in CNC machines, textile equipment, and small pumping systems. Featuring advanced sensorless vector control, a built-in brake unit, and flexible single/three-phase input options, this robust inverter delivers exceptional torque accuracy, seamless RS485 Modbus integration, and 30% energy savings in a space-saving design.
Key Features
⚡ High-Efficiency Vector Control
- Advanced sensorless vector control algorithm for high-precision torque response
- ±0.5% speed accuracy without encoder feedback
- Delivers stable low-speed operation and rapid dynamic response
- Eliminates encoder cost and maintenance complexity
🛑 Built-in Brake Unit
- Integrated braking chopper included as standard (0.4-15kW models)
- No external brake module procurement required
- Rapid deceleration for high-inertia loads and vertical applications
- Saves panel space and reduces installation costs
🔌 Flexible Input Options
- Single-phase 230V or three-phase 230V/400V input configurations
- 50/60Hz auto-detection for international deployment
- Wide ±15% voltage tolerance handles unstable grid conditions
- Three-phase output for standard industrial motors
📡 Industrial Communication
- Standard RS485 interface with Modbus RTU protocol
- Direct PLC and SCADA system integration
- Remote parameter monitoring and control capability
- Industry 4.0 ready for IoT-enabled manufacturing
💰 Cost & Energy Optimization
- Up to 30% energy savings vs. traditional motor control
- Soft-start functionality eliminates mechanical shock
- Automatic torque boost for reliable heavy-load starting
- Compact mini design reduces installation footprint
🛡️ Robust Protection Systems
- Comprehensive protection: over-current, over-voltage, under-voltage
- Motor overload and over-temperature protection
- Auto-tuning function optimizes motor parameters
- IP20 standard with optional higher IP ratings available
Technical Specifications — 2.2KW Models
Select the appropriate voltage class and input phase for your power supply:
| Model Number | Input Voltage | Input Phase | Rated Power | Input Current | Output Current | Brake Unit |
|---|---|---|---|---|---|---|
| 2R2G-S2 | 230V ±15% | Single Phase | 2.2 kW | 23 A | 10 A | Built-in |
| 2R2G-2 | 230V ±15% | Three Phase | 2.2 kW | 11 A | 10 A | Built-in |
| 2R2G-4 | 400V ±15% | Three Phase | 2.2 kW | 5.8 A | 5 A | Built-in |
Model Code Guide: S2 = Single Phase 230V Input | -2 = Three Phase 230V | -4 = Three Phase 400V.
All 2.2kW models include built-in brake units as standard. Output is three-phase for all motor types.
Ideal Applications
🏭 CNC Machinery
Precision spindle control and axis drives requiring accurate speed regulation and rapid acceleration.
🧵 Textile Equipment
Spinning frames, looms, and winding machines needing synchronized speed control.
🪵 Woodworking Machinery
Saws, routers, and planers requiring constant torque and smooth variable speed.
🧴 Plastic Processing
Small extruders and auxiliary equipment requiring precise temperature-speed coordination.
🏗️ Material Handling
Conveyors, small hoists, and positioning systems benefiting from built-in braking.
⚙️ General Automation
Pumps, fans, mixers, and compressors requiring variable speed and energy savings.
Frequently Asked Questions
Can I use the single-phase model (2R2G-S2) with my three-phase 2.2kW motor?
Yes. The 2R2G-S2 accepts single-phase 230V input and provides three-phase 230V output to power standard three-phase motors—ideal for workshops without 3-phase grid access. The inverter generates the missing phases electronically. Note: Current draw is higher (23A vs. 11A)—ensure your supply circuit can handle the load. Full 2.2kW output is available.
Do I need an external brake resistor with the built-in brake unit?
The brake chopper is built-in, but the braking resistor is external. You only need to connect an external braking resistor if your application requires rapid deceleration or handles high-inertia loads. For most pump, fan, and general automation applications with gradual deceleration, the resistor is optional. This integrated design saves approximately $50-100 in external component costs.
How does sensorless vector control improve my CNC application?
Sensorless vector control provides ±0.5% speed accuracy and 150% starting torque at 0.5Hz—critical for CNC spindle orientation. Unlike standard V/Hz control, it maintains constant speed during cutting operations for better surface finish and longer tool life. No encoder wiring is needed, reducing system complexity versus traditional closed-loop systems.
Can I integrate this VFD with my existing PLC using Modbus?
Yes. The RS485 port supports Modbus RTU protocol with slave address configuration and baud rates up to 115200 bps. You can remotely control start/stop, frequency, and direction; monitor output current and fault status. For non-Modbus systems, analog inputs (0-10V, 4-20mA) and digital I/O are available for hardwired control.
What protection features prevent motor damage?
The 100PV provides comprehensive protection: over-current (150% for 60s), over-voltage, under-voltage, motor overload, and inverter over-temperature. The auto-tuning function measures motor resistance and inductance to optimize current control. Additional features include stall prevention and automatic torque boost for heavy starts—significantly extending motor lifespan.
⚠️ Extended Range Available
The 100PV Mini series spans 0.75kW to 500kW. Contact Ideeishop for:
- Higher power models (4kW – 500kW) for industrial scaling
- Special voltage configurations (480V, 575V, 690V)
- EMC filters, line reactors, and DC chokes for harsh environments
- OEM customization, private labeling, and bulk pricing
Configure Your 2.2KW VFD System
Unsure between single-phase (S2) and three-phase (-2/-4) models? Our team provides free application consulting.
