Description

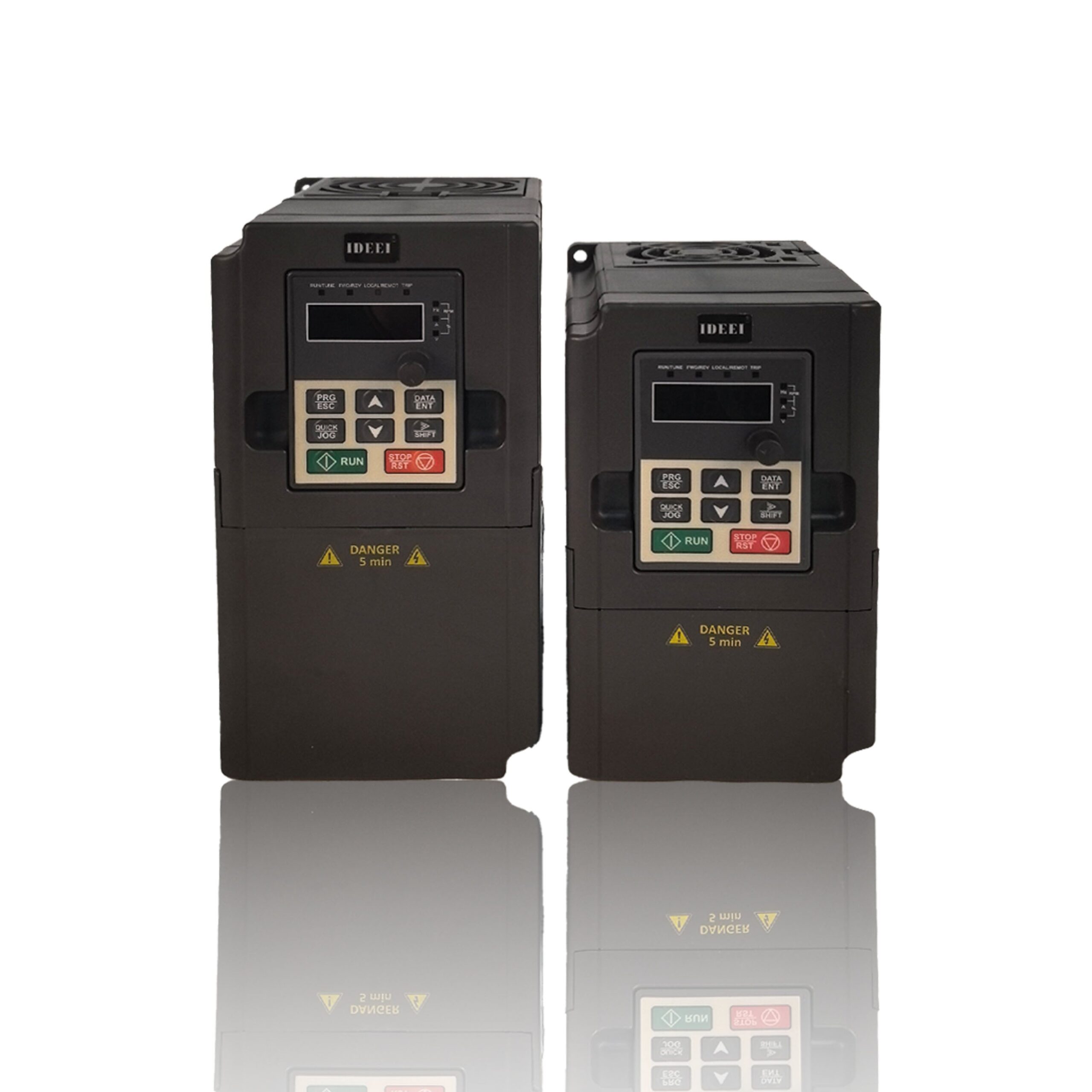

The 100PV Mini VFD 5.5KW is a robust industrial vector drive engineered for high-precision CNC machining, textile automation, and heavy-duty material handling. Featuring DC900V input capability, advanced sensorless vector control, and a built-in brake unit, this compact AC drive delivers exceptional torque accuracy, seamless PLC integration via RS485 Modbus, and 30% energy savings for demanding manufacturing environments.
Key Features
⚡ High-Voltage DC Capability
- DC900V input support for high-voltage DC bus applications
- Ideal for solar-integrated industrial systems and DC microgrids
- Wide input voltage range ensures stable operation under fluctuating supply
- Reduces conversion losses in hybrid AC/DC setups
🎯 Precision Vector Control
- Advanced sensorless vector control for high-precision torque response
- ±0.5% speed accuracy without encoder feedback
- 150% starting torque at 0.5Hz for heavy-load applications
- Superior dynamic response for CNC spindle and positioning systems
🛑 Built-in Brake Unit
- Integrated braking chopper included as standard (0.4-15kW models)
- No external brake module procurement required
- Rapid deceleration for high-inertia loads and emergency stops
- Saves panel space and reduces installation complexity
🔌 Flexible Input Options
- Three-phase 230V ±15% or 400V ±15% AC input configurations
- High-voltage DC bus input capability (DC900V rated)
- 50/60Hz auto-detection for global deployment
- Wide voltage tolerance handles unstable industrial grid conditions
📡 Industrial Communication
- Standard RS485 interface with Modbus RTU protocol
- Direct PLC and SCADA system integration
- Multi-step speed control and programmable I/O configuration
- Remote monitoring and parameter adjustment capability
💰 Operational Efficiency
- Up to 30% energy savings vs. traditional motor control methods
- Soft-start functionality eliminates mechanical shock and extends motor life
- Automatic torque boost ensures reliable startup under heavy loads
- Compact mini design reduces electrical panel footprint
Technical Specifications — 5.5KW Models
Select the appropriate voltage class for your industrial power supply or DC bus configuration:
| Model Number | Input Voltage | Rated Power | Input Current | Output Current | DC Bus Rating | Brake Unit |
|---|---|---|---|---|---|---|
| 5R5G-2 | 3P 230V ±15% | 5.5 kW | 21 A | 20 A | DC 540V | Built-in |
| 5R5G-4 | 3P 400V ±15% | 5.5 kW | 15 A | 13 A | DC 900V | Built-in |
| 5R5P-4 | 3P 400V ±15% | 5.5 kW | 15 A | 13 A | DC 900V | Built-in |
| 7R5P-4 | 3P 400V ±15% | 7.5 kW | 20 A | 17 A | DC 900V | Built-in |
Model Code Guide: G = General Purpose (Constant Torque, 150% overload) | P = Pump/Fan (Variable Torque, 120% overload). -2 = 230V class | -4 = 400V class with DC900V bus capability. All 5.5kW models include built-in brake units.
Ideal Applications
🏭 CNC Machining Centers
Precision spindle control, rigid tapping, and axis drives requiring ±0.5% speed accuracy and rapid torque response.
🧵 Textile Manufacturing
Spinning frames, weaving looms, and winding machines requiring synchronized multi-motor control and stable low-speed operation.
🪵 Woodworking Machinery
CNC routers, panel saws, and edge banders requiring constant torque and rapid acceleration/deceleration cycles.
🧴 Plastic Processing
Injection molding machine auxiliaries, extruders, and pelletizing lines requiring precise temperature-speed coordination.
🏗️ Material Handling
Conveyors, hoists, and automated guided vehicles (AGVs) benefiting from built-in braking and rapid stop capability.
⚡ Solar-Integrated Systems
DC900V capability enables direct PV array connection for solar-powered industrial pumps and machinery without AC conversion.
Frequently Asked Questions
What does “DC900V” capability mean for my application?
The DC900V rating (specific to 400V class models like 5R5G-4) means the inverter can accept high-voltage DC bus input directly, up to 900V DC. This is critical for solar-integrated industrial systems where PV arrays feed a DC bus directly, or for DC microgrid applications. It eliminates the need for additional DC-AC conversion stages, reducing system complexity and conversion losses. For standard AC grid applications, the inverter operates normally on three-phase 400V AC input, internally generating the DC bus.
Should I choose the G-type or P-type model for my 5.5kW application?
Select based on your load characteristics: G-type (General) provides 150% overload capacity for 60 seconds, designed for constant torque applications like CNC machines, conveyors, and compressors where full torque is needed at all speeds. P-type (Pump/Fan) provides 120% overload capacity, optimized for variable torque loads like centrifugal pumps and fans where torque requirements decrease at lower speeds. For CNC and textile machinery, choose G-type. For HVAC and pumping, P-type offers better energy optimization. The 7R5P-4 provides higher power (7.5kW) in a P-type configuration for larger pump applications.
Do I need an external braking resistor with the built-in brake unit?
The brake chopper is built-in, but the braking resistor is external. The 5.5kW models include an internal IGBT brake chopper circuit that manages regenerative energy during deceleration. You must connect an appropriately sized external braking resistor (typically 100-200Ω, 1-2kW rating for 5.5kW drives) to dissipate this energy as heat. Without the resistor, the drive cannot execute rapid stops or handle high-inertia loads. For standard pump and fan applications with long deceleration ramps, the resistor may be optional. Contact our technical team for resistor sizing based on your duty cycle and deceleration requirements.
Can this 5.5kW VFD replace my existing star-delta starter for energy savings?
Yes, with significant benefits. Replacing a star-delta starter with the 100PV VFD provides soft-start capability (eliminating mechanical shock and water hammer in pumps), variable speed control (optimizing flow/pressure rather than throttling), and 30-50% energy savings at partial loads compared to fixed-speed operation. The built-in brake unit also enables rapid stopping versus coast-to-stop with star-delta. For a 5.5kW motor running 8,000 hours/year at 75% load, typical payback is 12-18 months depending on local electricity rates. The RS485 interface also enables remote monitoring impossible with traditional starters.
What is the warranty and technical support for industrial deployments?
Ideeishop provides a standard 24-month warranty on all 100PV series inverters, covering manufacturing defects and component failures under normal operating conditions. For B2B and OEM customers, we offer pre-sales application consulting to ensure proper model selection (G vs. P, voltage class, braking requirements), installation guidance, and commissioning support. Extended warranty packages (up to 5 years) and on-site technical service are available for large manufacturing projects. Our technical team supports Modbus integration, parameter optimization, and troubleshooting throughout the product lifecycle.
⚠️ Extended Power Range Available
The 100PV Mini series spans 0.75kW to 500kW. This listing covers 5.5-7.5kW models. Contact Ideeishop for:
- Lower power models (0.75kW – 4kW) for smaller machinery
- Higher power models (11kW – 500kW) for heavy industrial equipment
- Special voltage configurations (480V, 575V, 690V) for international markets
- EMC filters, line reactors, and DC chokes for harsh electrical environments
- OEM customization, private labeling, and volume pricing agreements
Configure Your 5.5KW Industrial VFD System
Need help selecting between 230V and 400V models? Unsure about G-type vs. P-type for your CNC or pumping application? Our industrial automation specialists provide free technical consulting.
